A popup at the bottom of the screen will alert you to the tag filter that is currently applied.

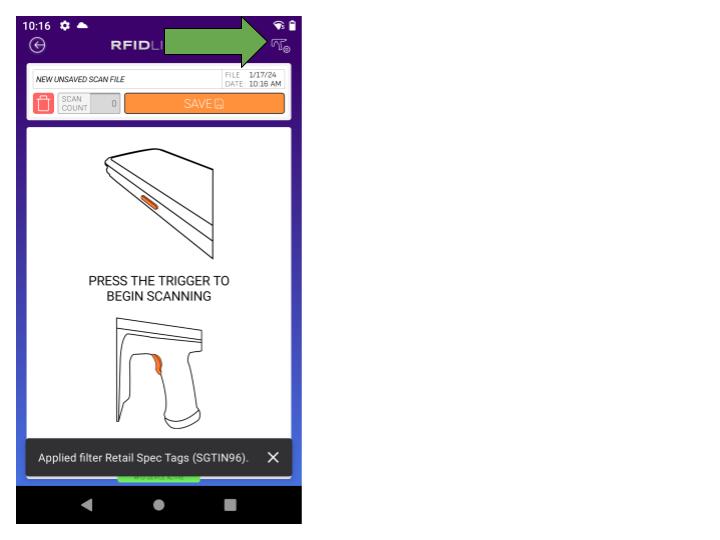

Choose the Settings icon in the top right corner to set the RFID power, Tag Filter and Display Template you want to apply.
Set the power level of the RFID reader to control the distance and read strength by sliding the bar left and right.
* - 1 is the minimum and 30 is the maximum.
* - The lower the power the closer you will have to be to the tags you are trying to read.
* - Lower the power if you are picking up tags from nearby pallets or racks that you are not intending to scan.
* - Raise the power if you are not picking up all of the tags in a stacked pallet or a pallet with multiple tagged items enclosed in boxes inside of larger boxes.
Choose your filter from the dropdown list under the Tag Filter section.
* - Learn more about creating Filters here.

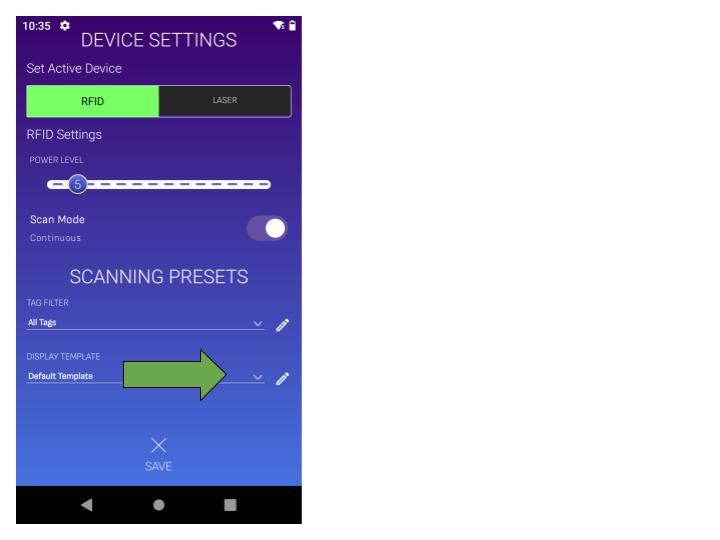

Set the fields of information you want to see in the tag view by selecting the dropdown menu under the Display Template section.
* - Learn more about Display Templates here.

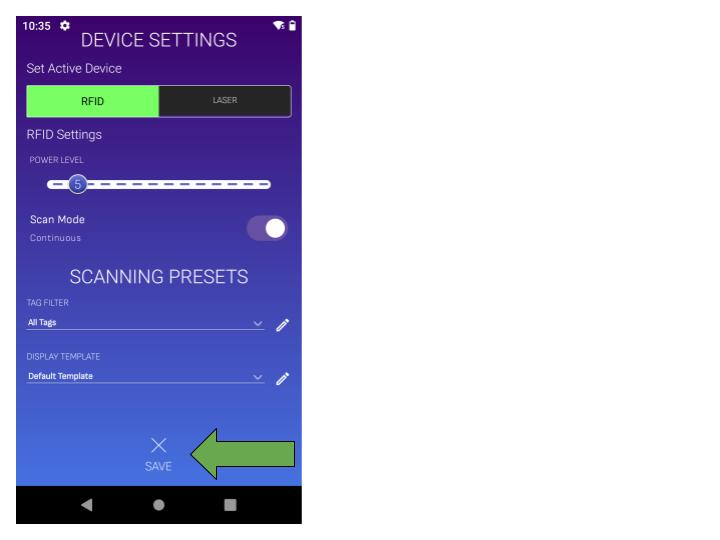

Choose Save to return to the scanning screen and begin reading/adding tags with your selected RFID Reader power, Tag Filter and Display Templates applied.

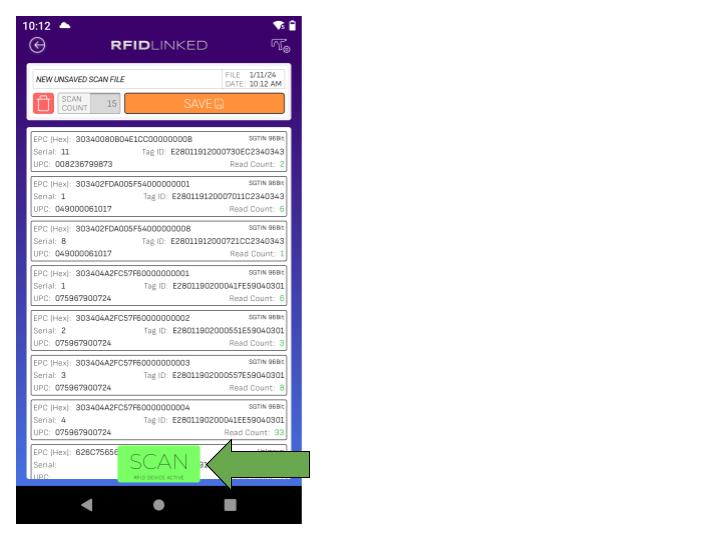

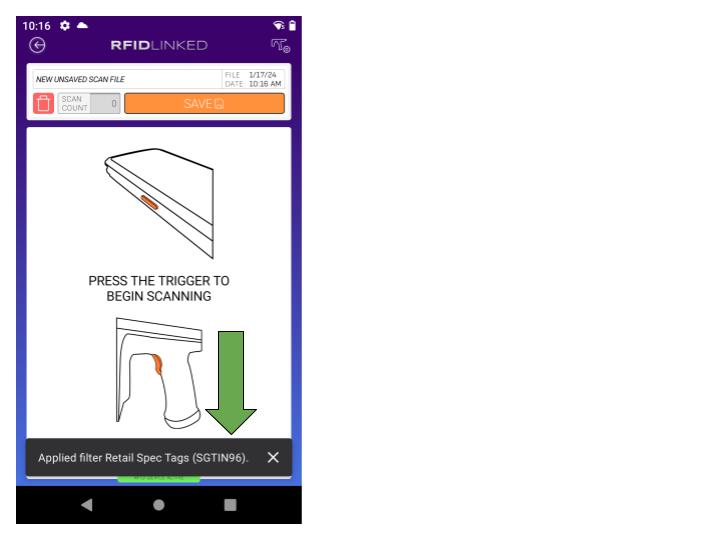

Once the applied filter is correct, pull the handle trigger, one of the two orange side buttons or push the onscreen green SCAN button to start reading tags.
* - The scan is set to Continuous scan so as long as you hold the trigger/push the scan buttons the reader will continue to read until you release it. There is no need to continually pull the trigger/push the scan buttons to read data.
** - You will hear an audible beep and the unique tags that are being read will appear in a growing list with the newest tag appearing at the top.
*** - You can see a running count of the tags that have been read in the SCAN COUNT section in the top left.

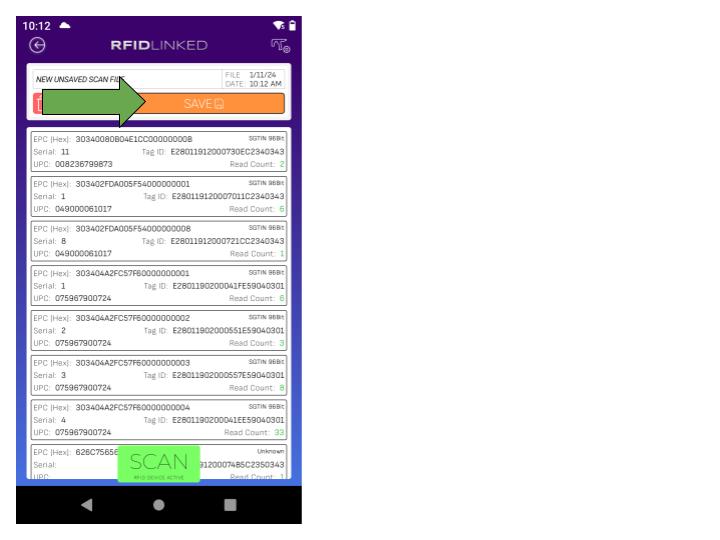

Scan all of the tags that you want to collect and then choose SAVE to create a new file.
Give the file a Name and add any Notes that you would like to attach to the file.
Click SAVE and you will get a confirmation screen and then be returned to the read tag list where you can continue to scan or exit to perform other functions.
