Getting started with the Chainway U300 Fixed Mount device requires a few initial setup steps before you can use RFIDLinked.
Adjusting the Screen DPI
The U300 device comes setup with a low resolution screen DPI by default. You will want to adjust this to make better use of your attached screen.

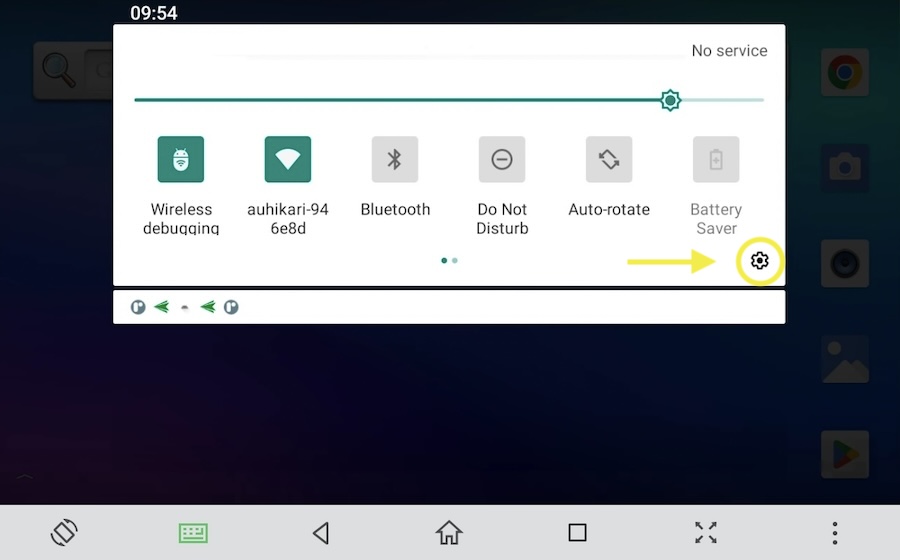

1. Pull down from the top of the screen and click the Gear icon to enter System Settings.
2. Click on the Display option, and then Display Size.

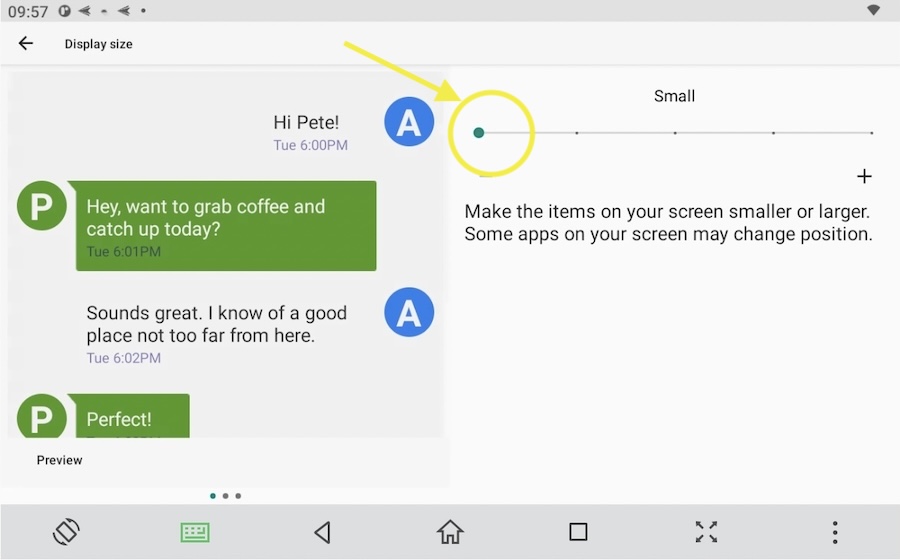

3. We recommend selecting the "Small" option to provide the best use of your screen.
Disable the UHF Service
The U300 device comes with a UHF Service which has control of the onboard RFID Radio by default. You will need to disable this service in order for RFIDLinked to control the onboard radio.

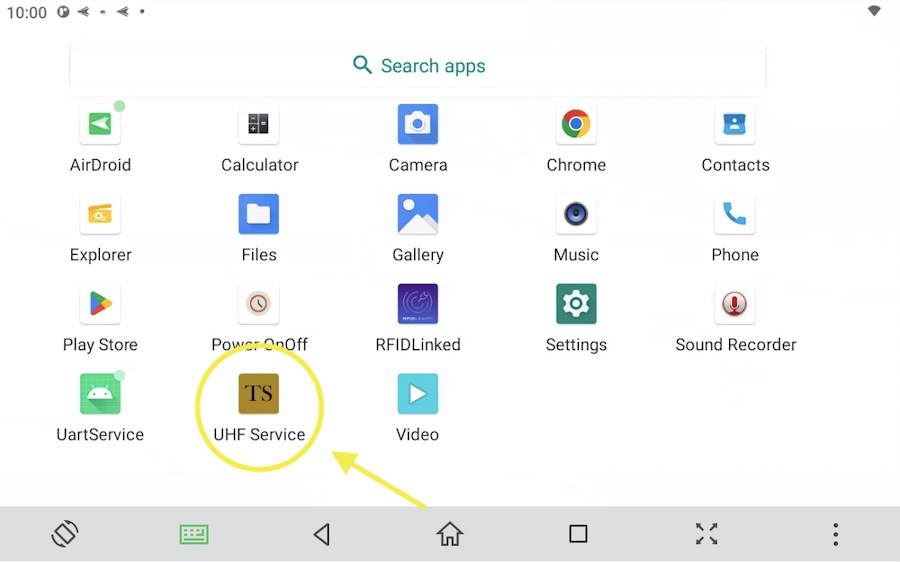

1. Open the Application drawer, and select the UHF Service application

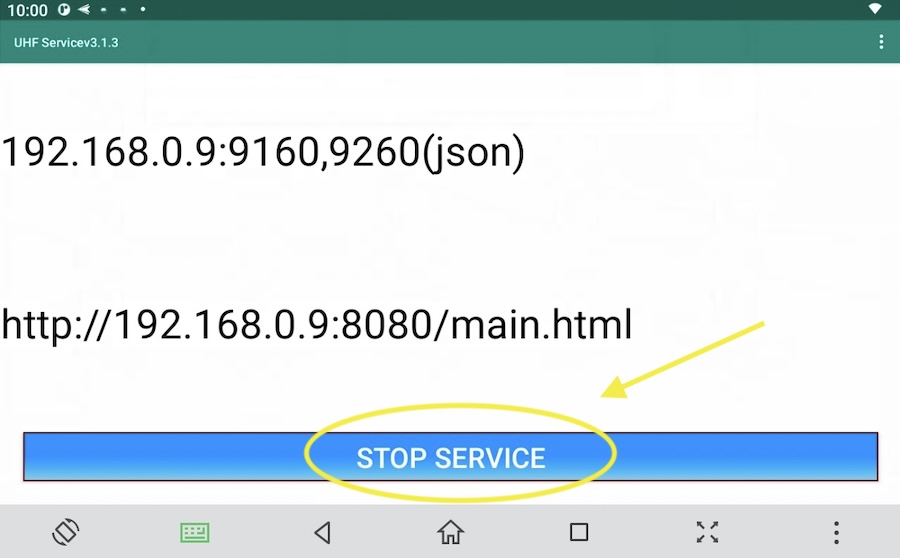

2. Click the "Stop Service" button.
Install RFIDLinked
If not already installed, you can browse to https://install.rfidlinked.com to download and Install the RFIDLinked application.
