Before You Begin
Before you start printing EZ Tags, you need to have configured your RFID enabled printer in RFIDLinked. Review the Add a Printer knowledge base article if you haven't done this yet.
If you need to print EZ tags in bulk, review the Ez Tag Bulk Printing Guide knowledge base article.
Printing EZ Tags

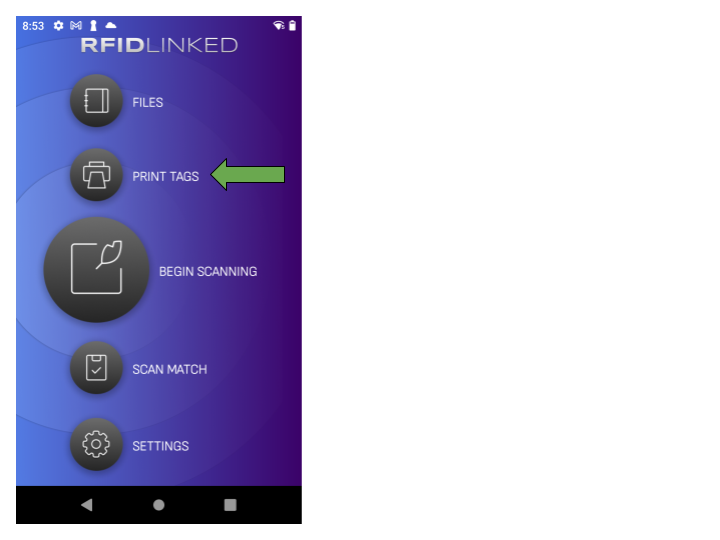

Choose Print Tags from the home screen

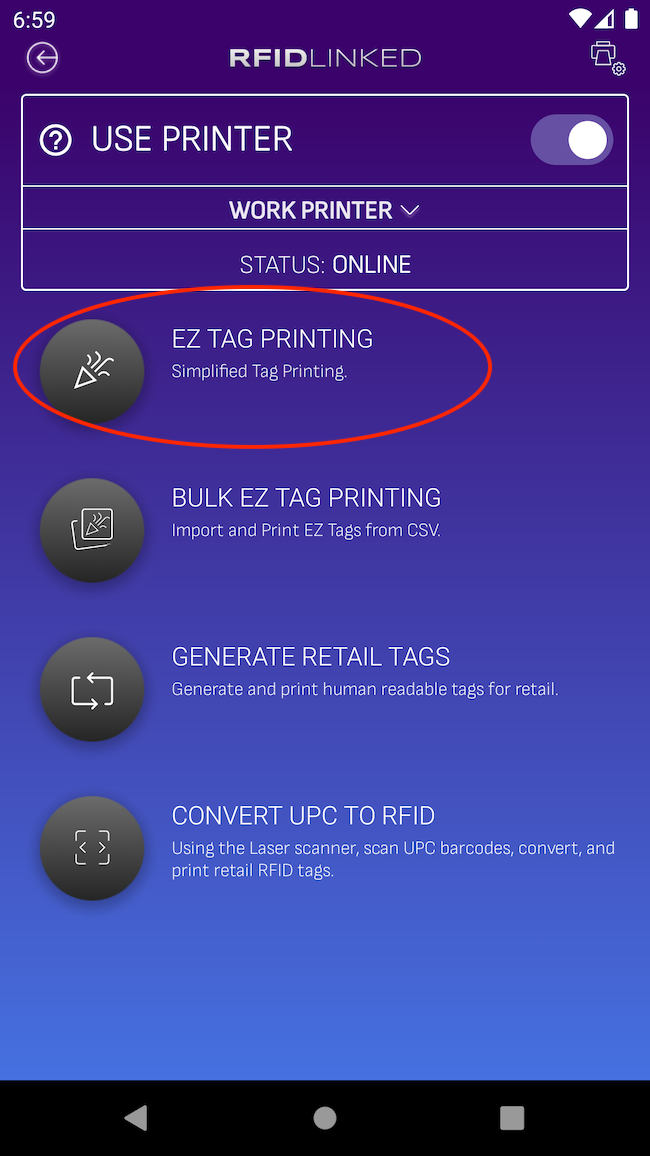

Choose EZ Tag Printing

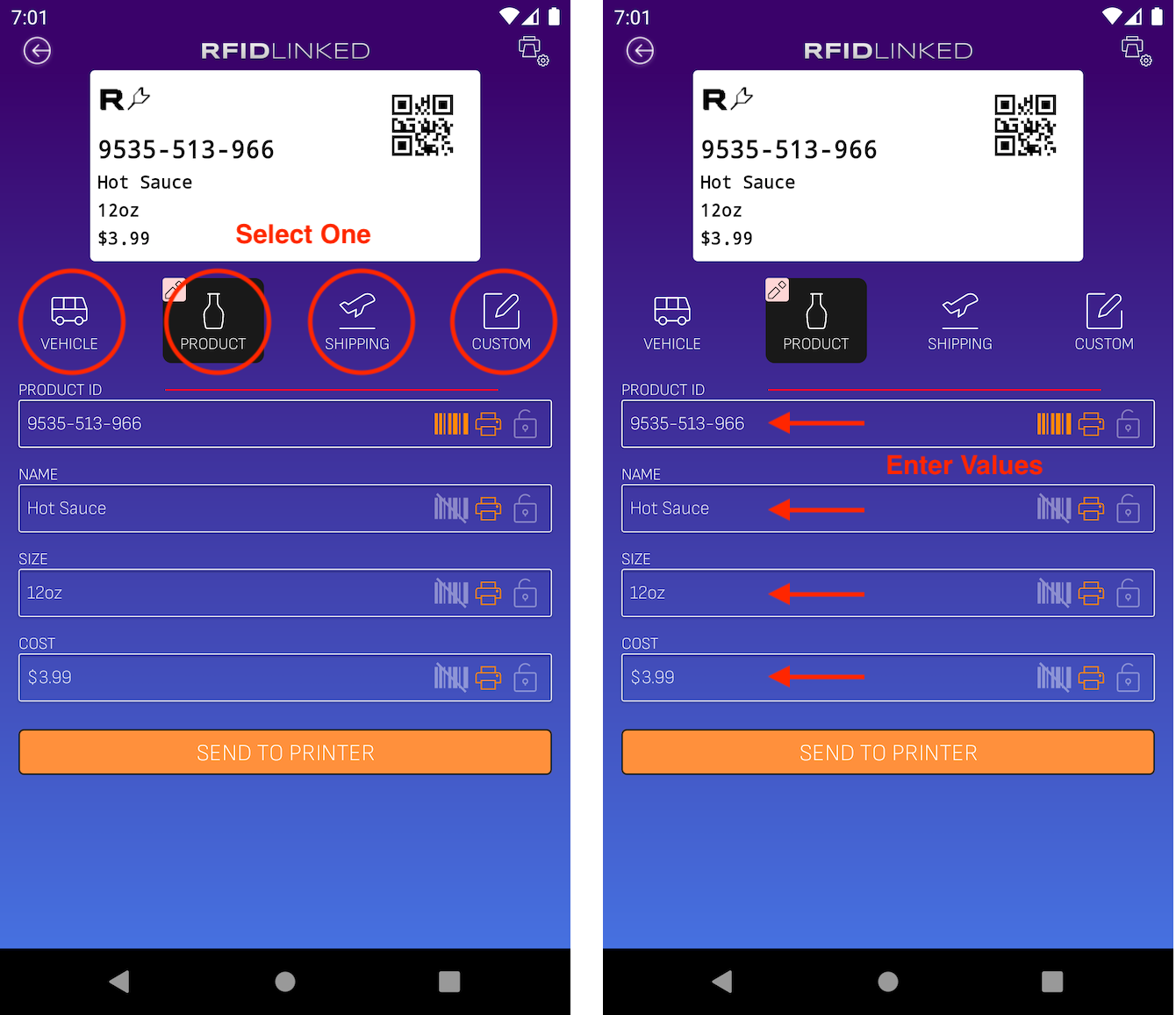

Four customizable Template's are provided. Choose the template you wish to use.
Fill out as many of the data fields that you would like.
NOTE: The first field is the only required field as it will be programmed into your RFID tag's EPC memory. Because of the limited memory available on RFID tags, this field is limited to 12 alpha-numeric characters.
Fields 2 through 4 are limited to a maximum of 32 alpha-numeric characters, but are not required to be provided if not needed.
The colored bar above each field indicates how many more characters you can use.

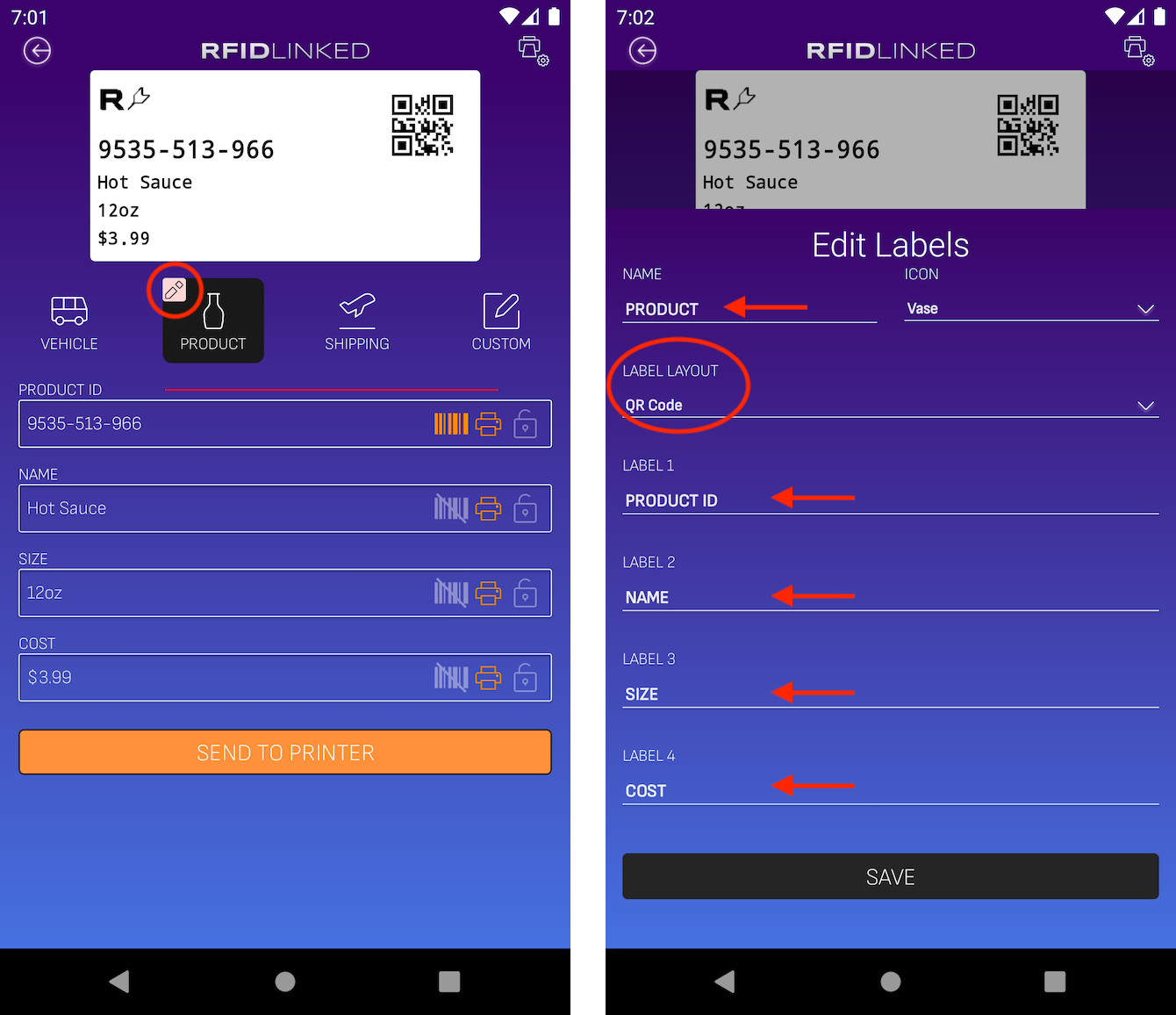

Click the Pencil Icon next to the template type if you want to edit the template name or the labels of the fields.
Additionally you can change the Label Layout to either QR Code or Asset Tag to change the design of the label.

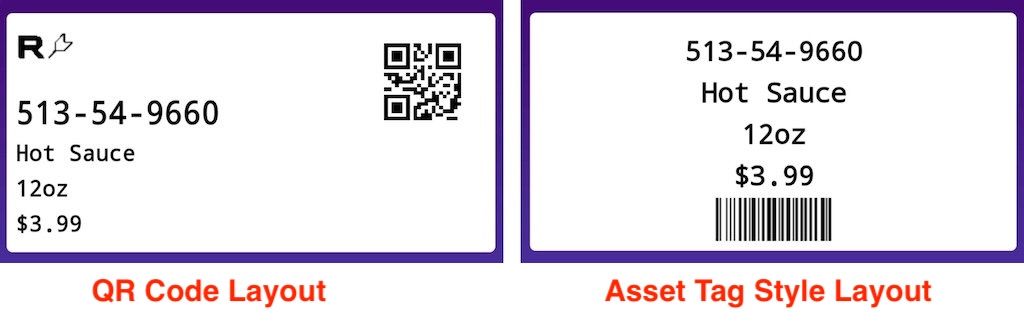

The two available label layouts are shown below:

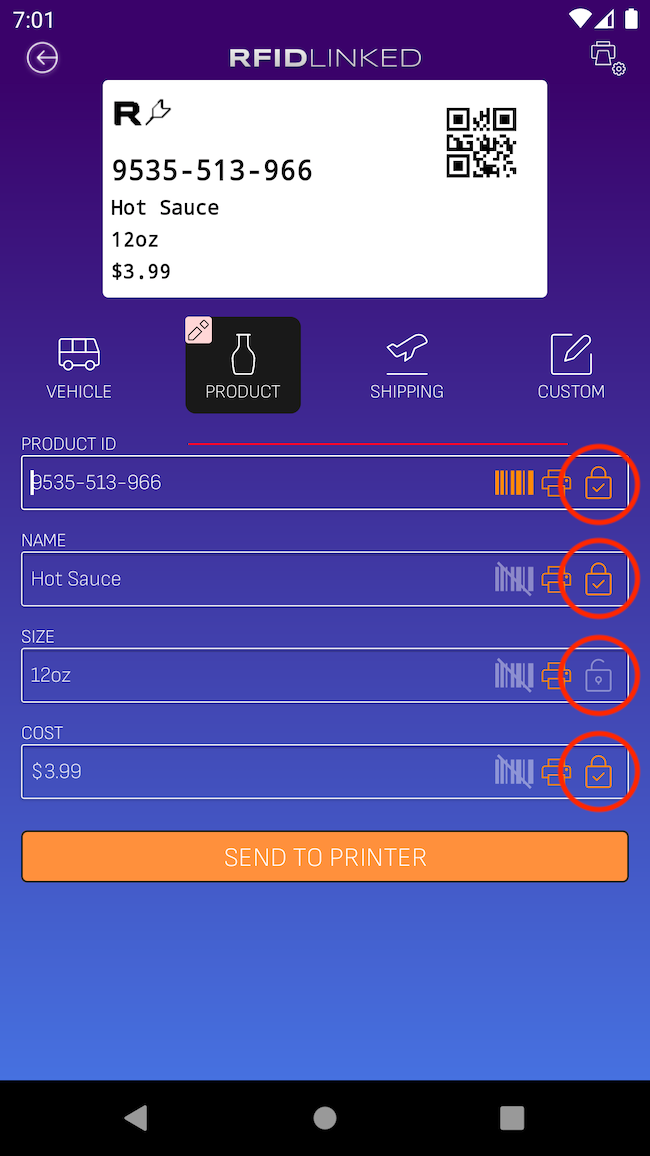

If you intend to print multiple tags with the same values, tap the Lock Icon next to the fields you would like to retain the values for.

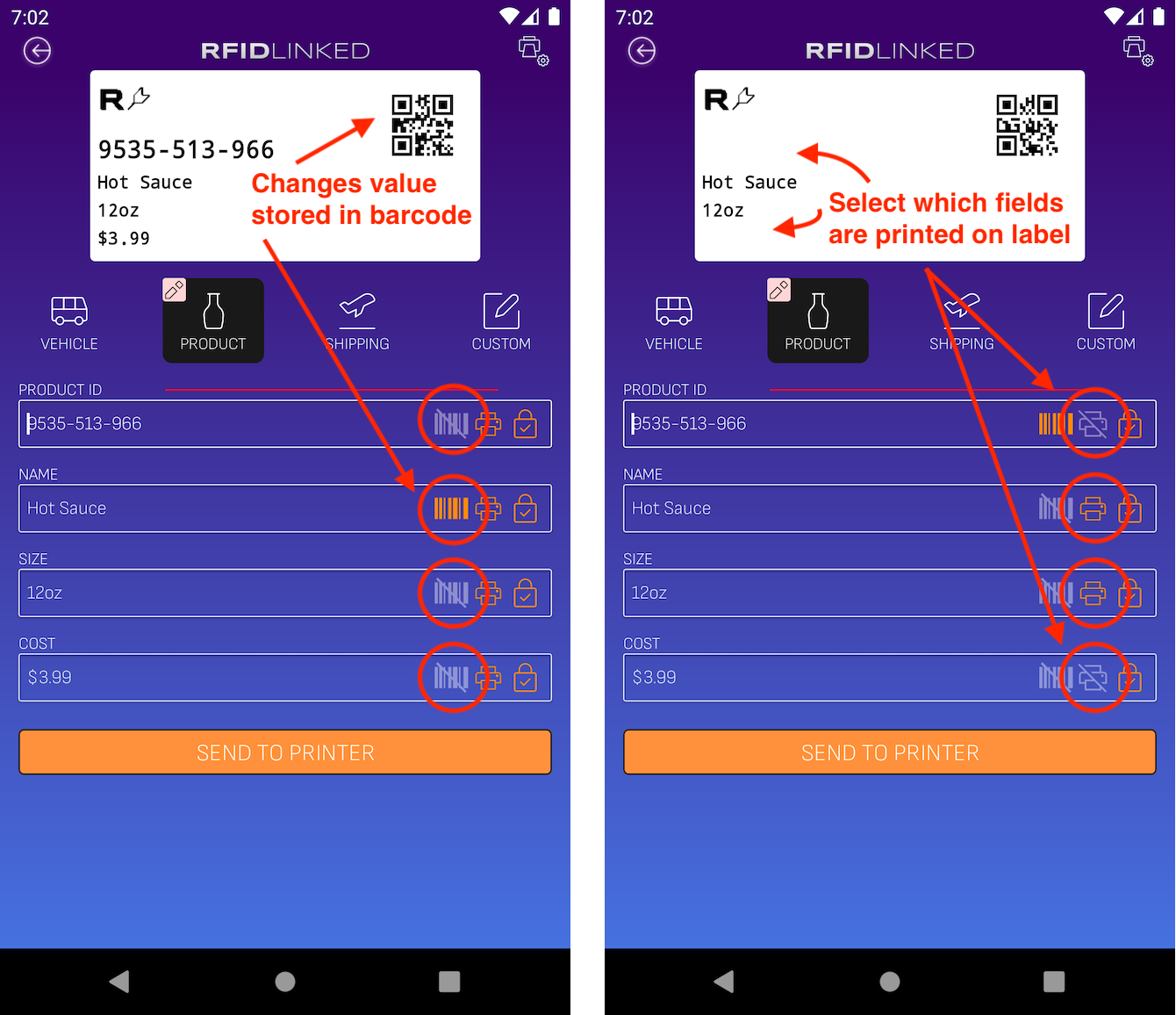

Tapping the Barcode Icon allows you to select which value is stored in the generated QR Code / Barcode on the label. To Print NO QR Code / Barcode simply tap the Barcode Icon twice to disable it for all fields.
Tapping the Printer Icon allows you to select which values are printed onto the label.

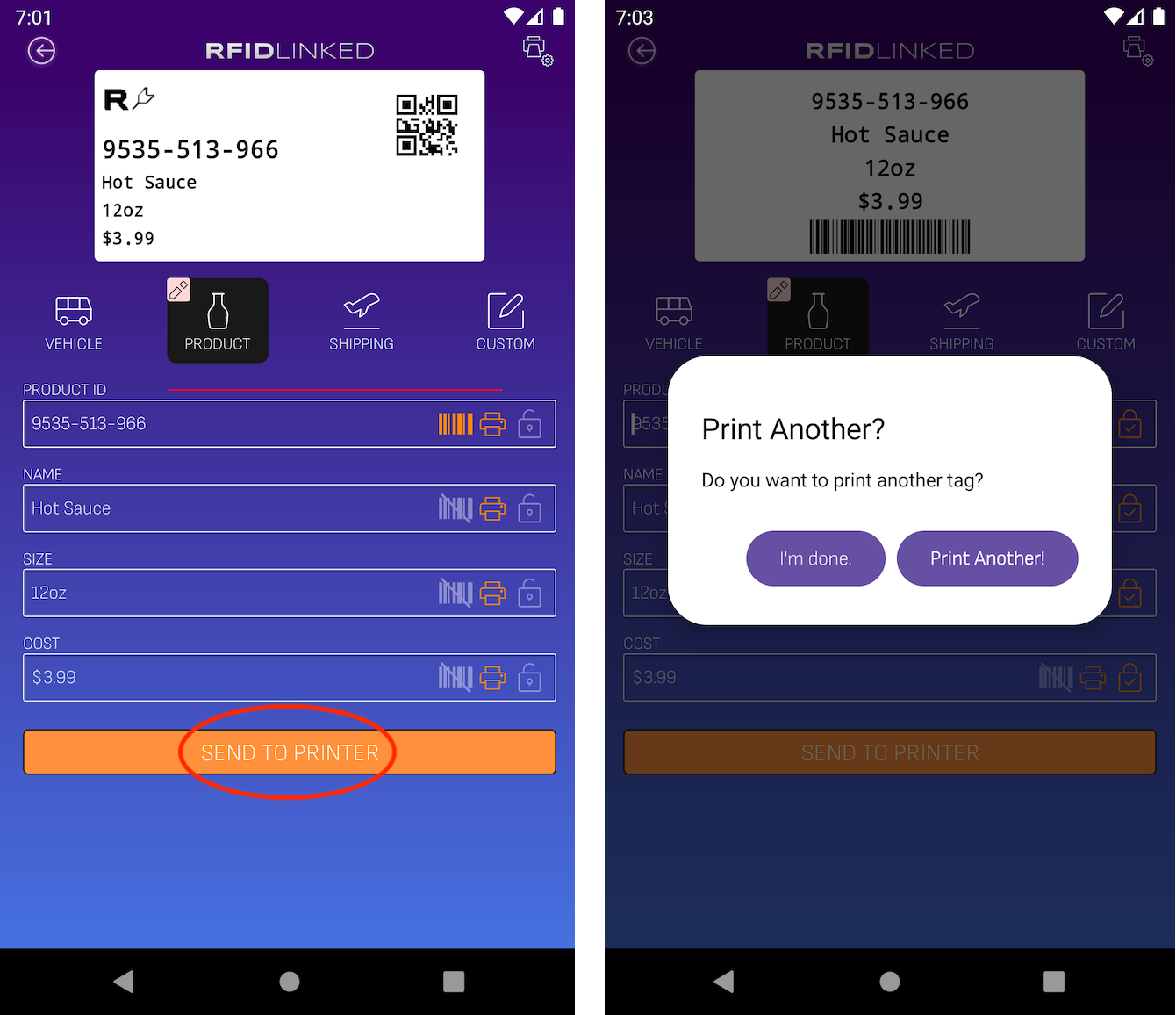

Once you are happy with your values and label setup, tap Send to Printer to print the tag.
After the tag prints choose either I’m done to return to the main menu or choose Print Another to reprint another tag with a similar setup.
* - The first field serves as the Unique ID of the tag and will be encoded in the EPC bank of the RFID tag
** - The first field is limited to 12 alpha-numeric characters.
*** - The other 3 fields are limited to 32 alpha-numeric characters.
**** - The colored bar above each field indicates how many more characters you can use.
